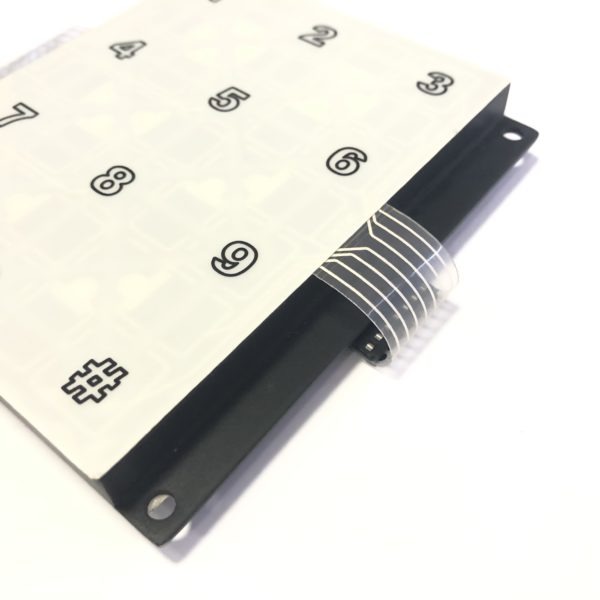

Smart Home Safe Unique Style Led Capacitive Touch Keypad Lock Module For Door

Product Overview:

Dignity manufactures a range of capacitive touch sensors (or switches) that provide the attractive modern look and feel, as well as the flexible UI of a touchscreen at a portion of the cost of a custom LCD touch module. Fully sealed behind a glass or plastic cover lens, with no moving components, and waterproofing, hard coating and other options available, capacitive touch sensors offer a reliable, durable, flexible and responsive alternative to traditional push button or membrane switches. Due to its resistance to scratching, chemicals, impacts and dust/debris, and its modern aesthetic, capacitive switching is achieving widespread use in industrial, medical, automotive and other industries.

Quick Details
Type: LED Display Module, Capacitive Touch Module
Display Size: 4.7″
Supplier Type: OEM / ODM
Place of Origin: Guangdong, China
Model Number: TP3301
Brand Name: DIGNITY
Material: PC/PET/customize
Application: Industrial control/Home Appliances etc.
Life Time: One Million Times
Thickness(mm): Custom thickness
structure: 3M
Operating Temperature: -30~70℃
Storage Temperature: -40~80℃
Certification: ROSH/REACH
Light Control: Slide control
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details : standard anti-static package
Port : Guangzhou / Shenzhen
Lead Time:
Quantity(pieces) 1 – 1000 >1000
Est. Time(days) 25 To be negotiated

Smart Home Appliances Slider Controller Capacitive Touch Module With LED Light



Parameter Options & Notes
Product Dimensions As specified
Integration Adhesive Bonding / OCA
Cover Lens
Cover Lens Thickness 0.55mm – 6mm
Cover Lens Material CS Glass, Polyester, Polycarbonate, Acrylic, etc.
Additional Options Silk screening, logos, cut outs,color PC, colored glass, etc.
Touch Controller & Interface
Controller Location Seven segment led display
Controller Type Hetai / Cypress / BYD / As Specified
Interface I2C, USB, RS232, UART
Operating System Windows XP, 7-10, Linux, iOS, Android
Touch Performance

Touch “panel”, buttons slide, touch wheel and other options

Interface

Interface Options

Pin, FFC, FPC, USB

Pin Spacing

2.54 / 1.25 / 1.0mm

Housing

Female, 2.54mm

Environmental
Operating Temp -30 C to +70 C
Storage Temp -30 C to +80 C
Relative Humidity 10 – 90% RH Non-Condensing
Miscellaneous
Optical 75% Transmittance; 5% Haze
Mechanical Lifespan 5 million touches
Optional Product Enhancements
Optical Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance Metal Mesh / Firmware Tuning / EMI Filters
